Geonex hole / bit openers

Geonex hole openers are designed to enlarge pilot holes in solid rock efficiently and accurately. By following a staged reaming process, they allow contractors to increase hole diameter in multiple steps—while maintaining alignment and reducing air consumption.

Key Specifications

  • Reams pilot holes up to 850 mm (33½”)
  • Accurate reaming in solid rock
  • Reduces air consumption during flushing
  • Ideal for mining, utilities, and special projects
165 mm
Most common pilot hole size
1100 mm
Maximum achievable bore diameter
4 steps
From pilot hole to full diameter
2
Drilling methods - Straight Line and Steerable boring

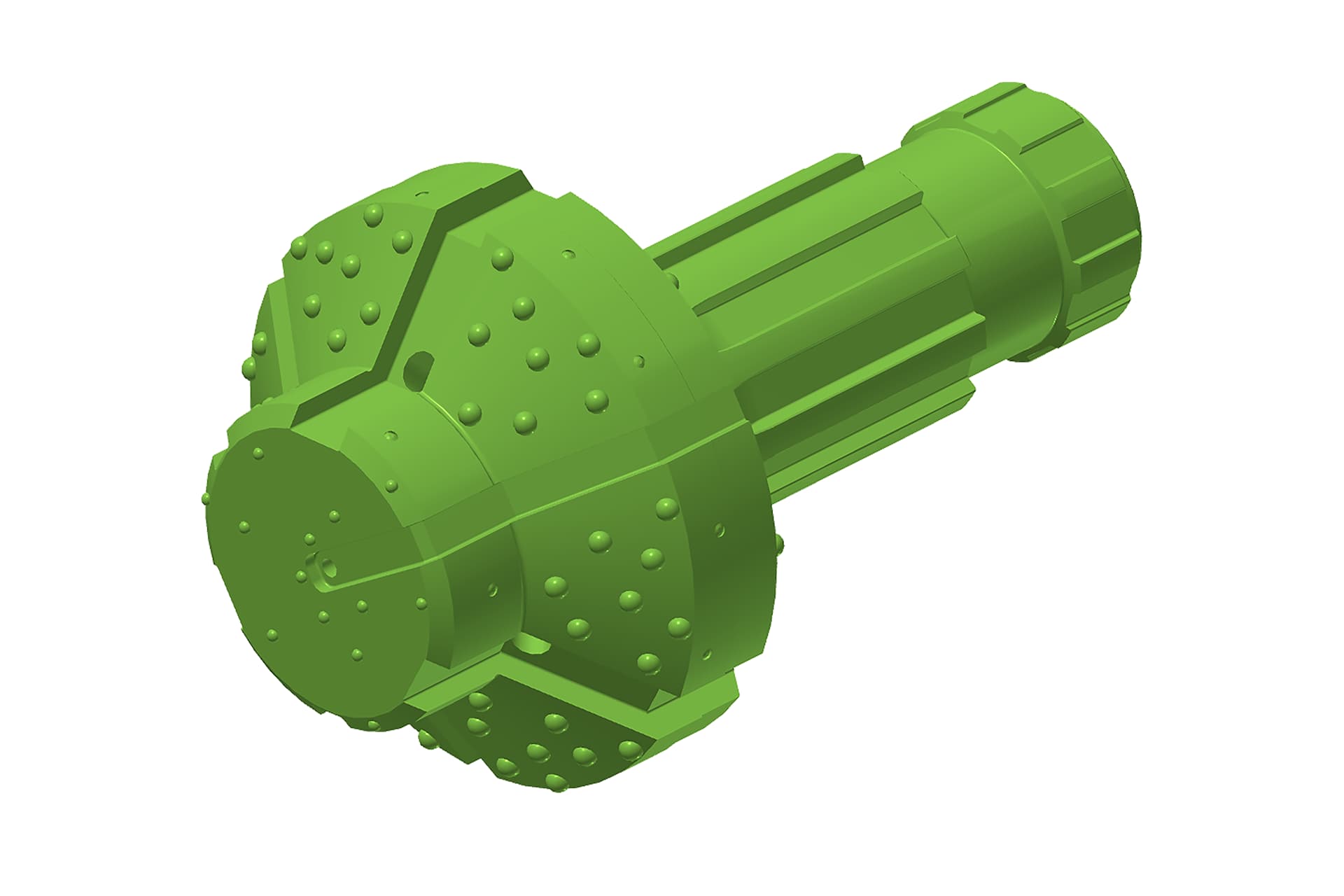

Geonex bit openers

Cost-Efficient Reaming with Precision

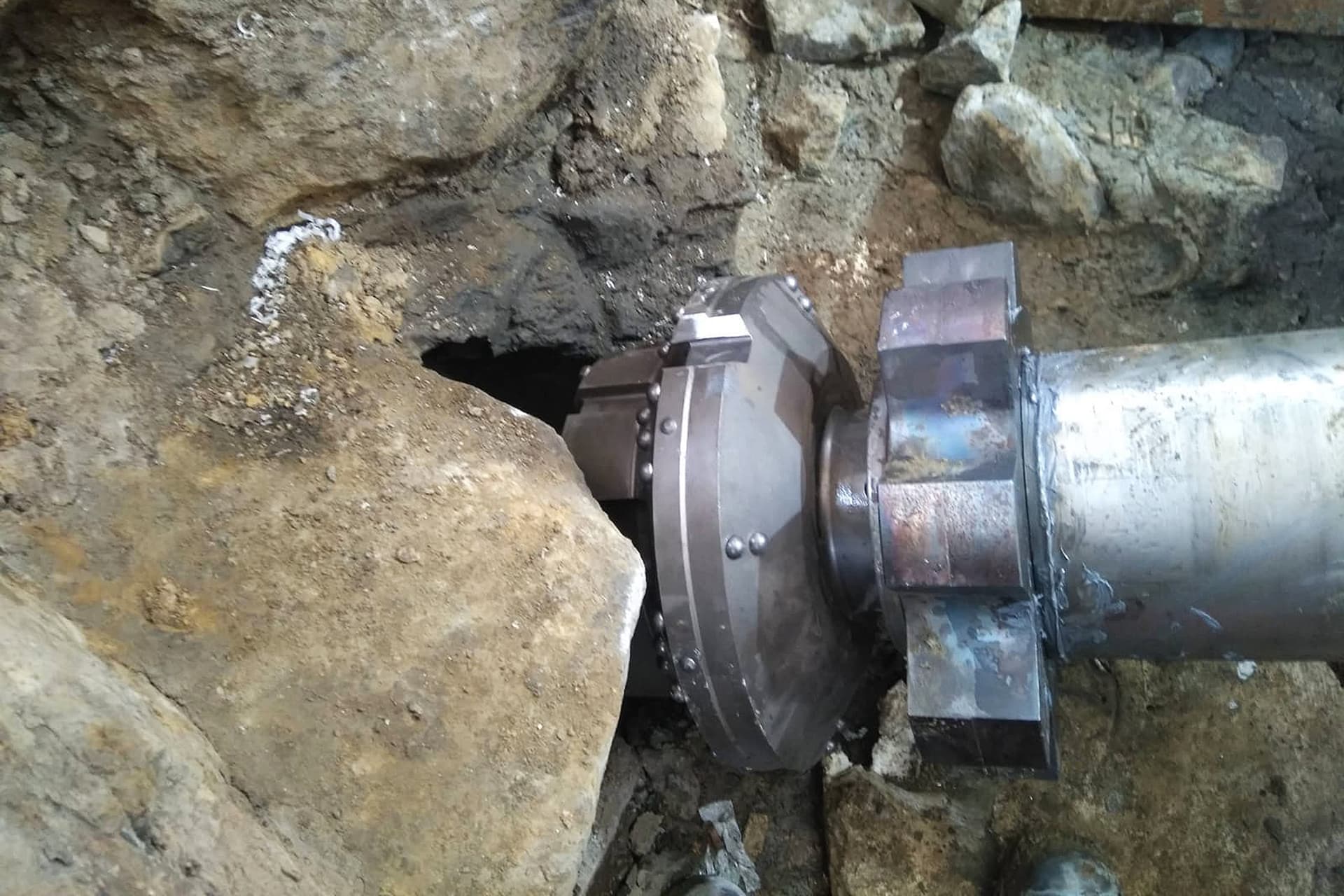

Geonex Hole Openers are engineered for expanding pilot holes into larger bore sizes—reliably and efficiently. Ideal for solid rock, the reamers follow the pilot hole with high precision, making them well-suited for demanding environments like mines, infrastructure tunnels, or utility inlets. Their geometry reduces the need for excess compressed air, keeping operating costs under control while maintaining flushing efficiency throughout the reaming process.

Versatile Use in Specialized Installations

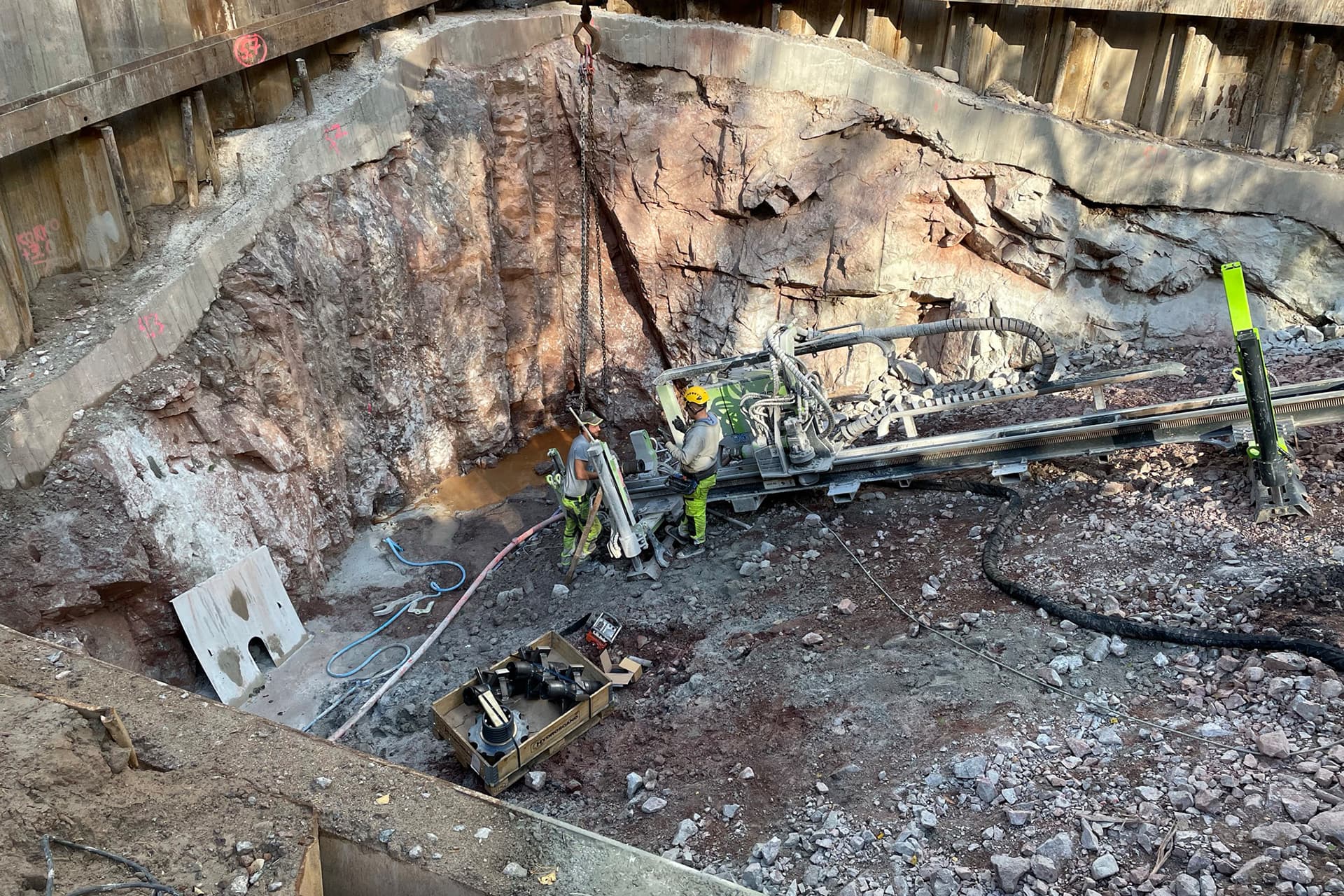

Geonex hole openers are commonly used in applications such as ventilation shafts, utility entries, and HDD conductor barrels. They provide a controlled way to enlarge bores without oversized rigs—making them ideal for projects where space is limited or where accuracy and reaming efficiency are critical.

Hole Openers Steps

Hole enlargement is carried out in stages, starting from a Ø165 mm (6½”) pilot hole and progressing through defined steps. The process allows bore diameters to grow incrementally—up to Ø850 mm (33½”)—ensuring stability, accuracy, and adaptability to jobsite requirements. Custom step sizes are also available upon request, making the solution flexible for both standard and specialized applications.

PILOT HOLE
Ø 165 (6 1/2”)
1st enlargement step
Ø 165 (6 1/2”) – Ø 254 (10”)
2nd enlargement step
Ø 254 (10”) – Ø 450 (18”)
3rd enlargement step
Ø 450 (18”) – Ø 650 (25 1/2”)
4th enlargement step
Ø 650 (25 1/2”)– Ø 850 (33 1/2”)
