Geonex HZR1200 Horizontal Drilling Rig

The Geonex HZR1200 is our largest and most powerful rig, purpose-built for large-diameter casing installations and long-distance crossings. With support for casing diameters from Ø406.4 mm to Ø1219.2 mm, the HZR1200 is ideal for major infrastructure and energy projects where high torque and precise control are essential—even in hard rock or mixed ground.

Key Specifications

  • Designed for large-scale utility and energy infrastructure applications
  • Supports casing diameters from Ø406–1219 mm in a single boring phase
  • Suitable for long crossings under roads, rivers, and rail lines

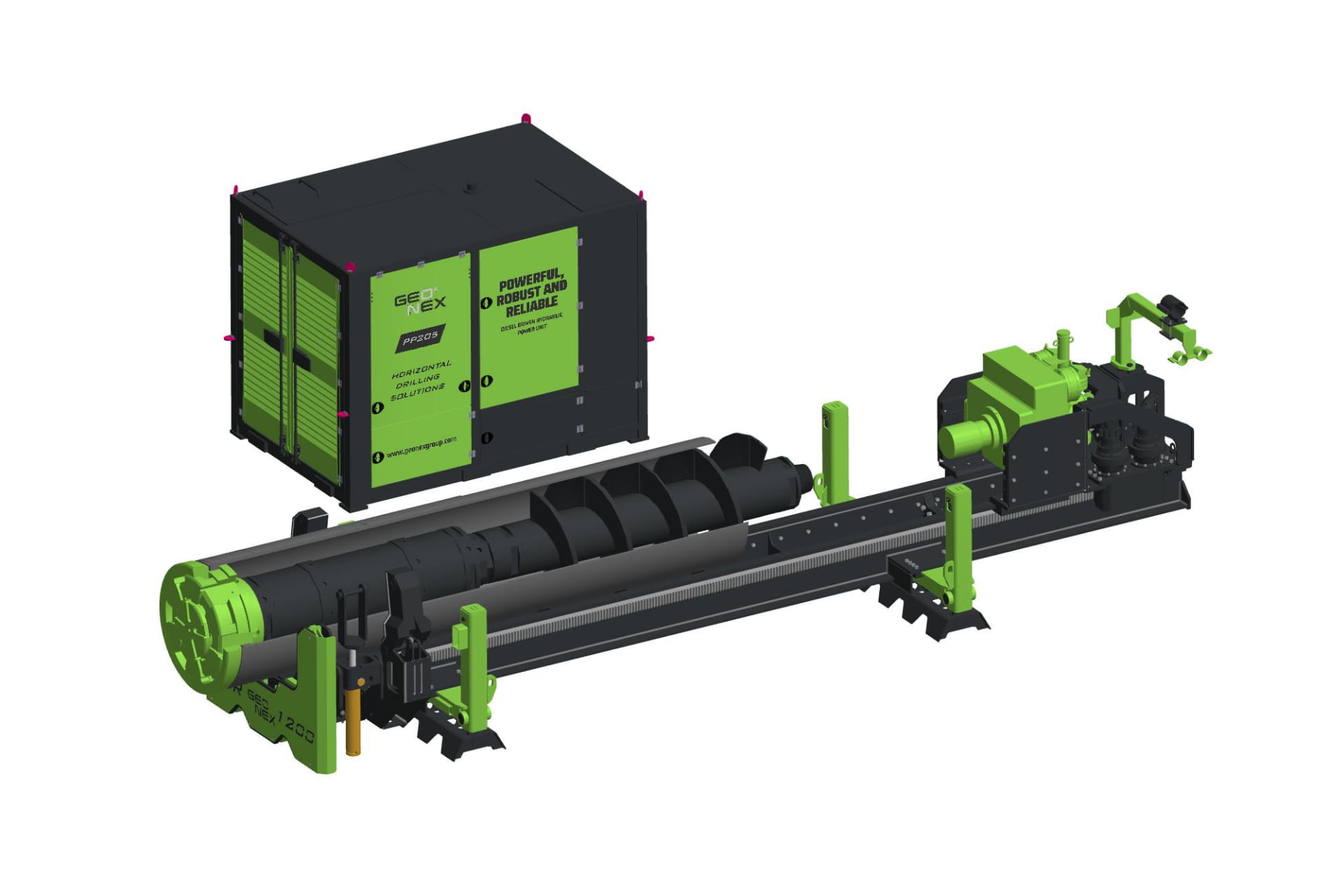

  • Delivered with PP205 power pack, remote control, and modular frame
Contact us
150 m
Or 450ft Drilling Length in mixed soil
1219,2 mm
Or 48” in Max Drilling diameter
120,000 Nm
of Torque
9700 m
Or 32’11” in Length of rig

The Benefits of the HZR1200

Maximum Capacity, Built for Results

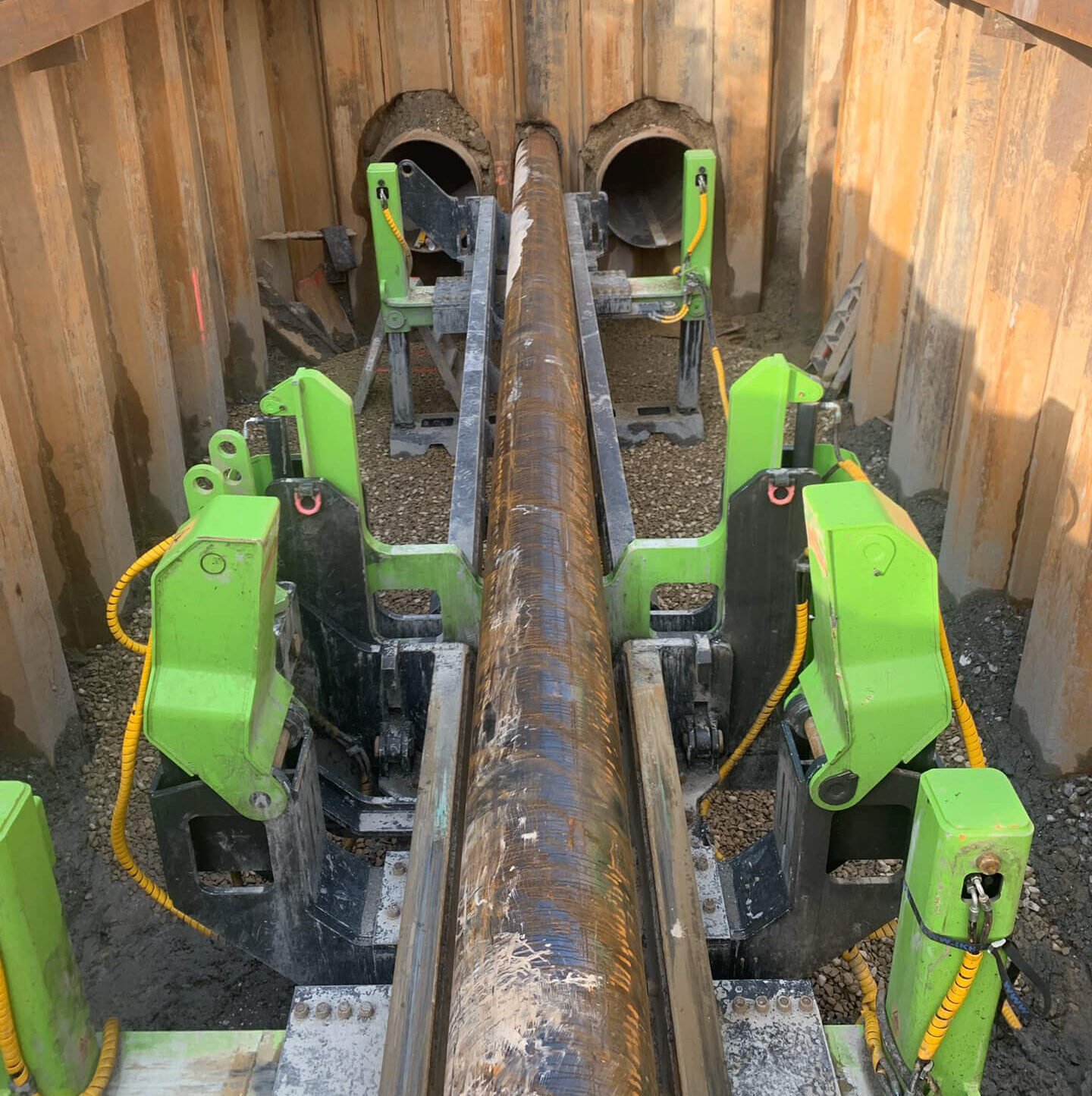

The HZR1200 combines strength, scale, and control in one fully integrated package. Its robust structure and extended feed force allow it to bore through the most demanding formations while maintaining precise alignment. With up to 950 kN of feed force and 120,000 Nm of torque, it’s capable of handling extreme bore profiles with confidence.

Reliable in the Harshest Conditions

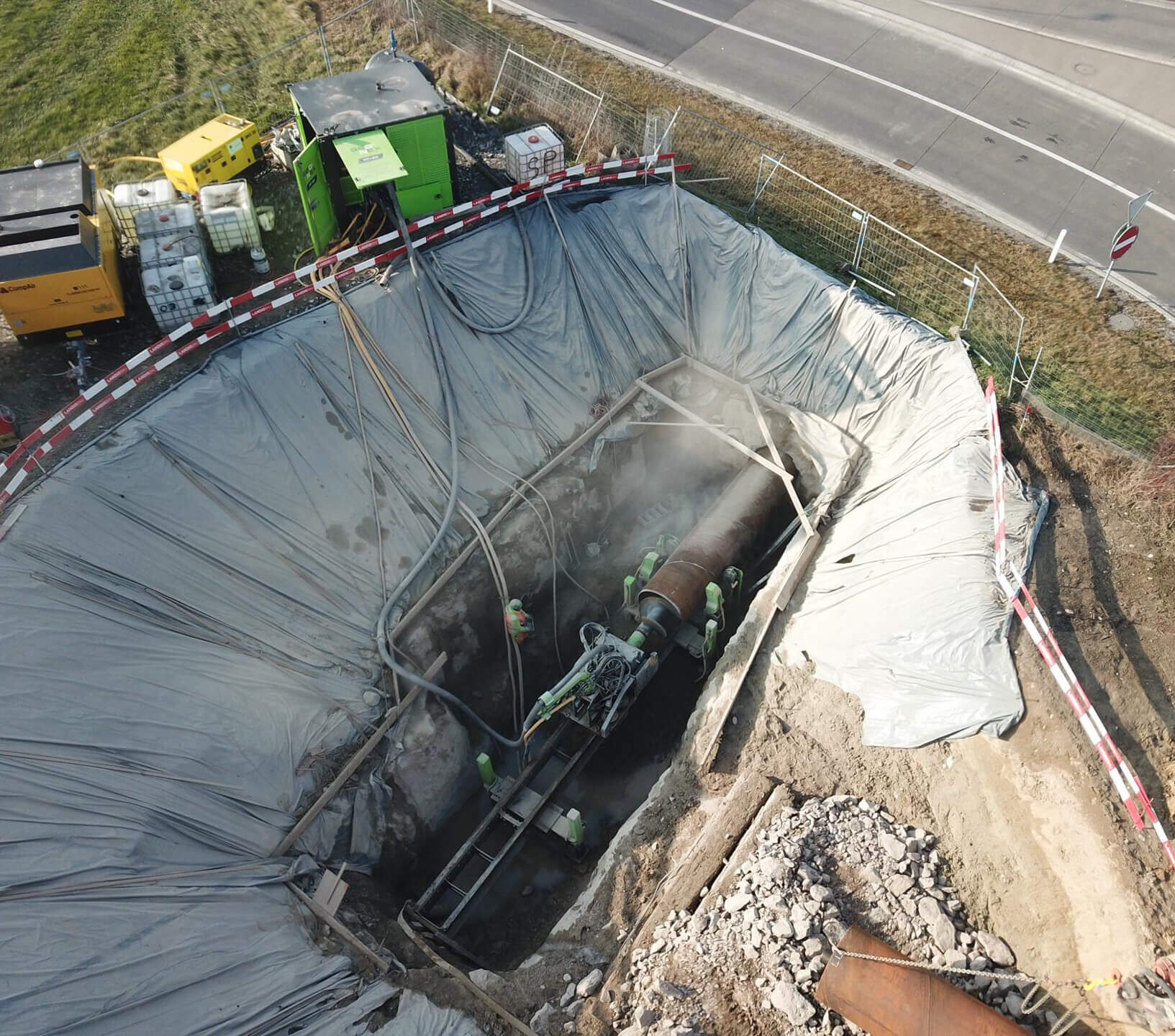

From bedrock to boulders and soft backfill, the HZR1200 has been proven in large-diameter installations worldwide. Whether used for high-capacity pipelines, conductor barrels for HDD, or critical crossings, it delivers consistent performance even when project conditions shift unexpectedly. Its modular extensions and reinforced frame make it adaptable across various site setups.

The PP205 Power Pack for HZR1200

The PP205 is a heavy-duty diesel power pack engineered to match the performance demands of the HZR1200. With high-pressure hydraulic circuits, integrated air compression, and remote control functionality, it keeps the system running efficiently even on extended bores. Its modular setup and rugged housing ensure easy deployment and reliable output on demanding sites.

Wide range of drilling equipment

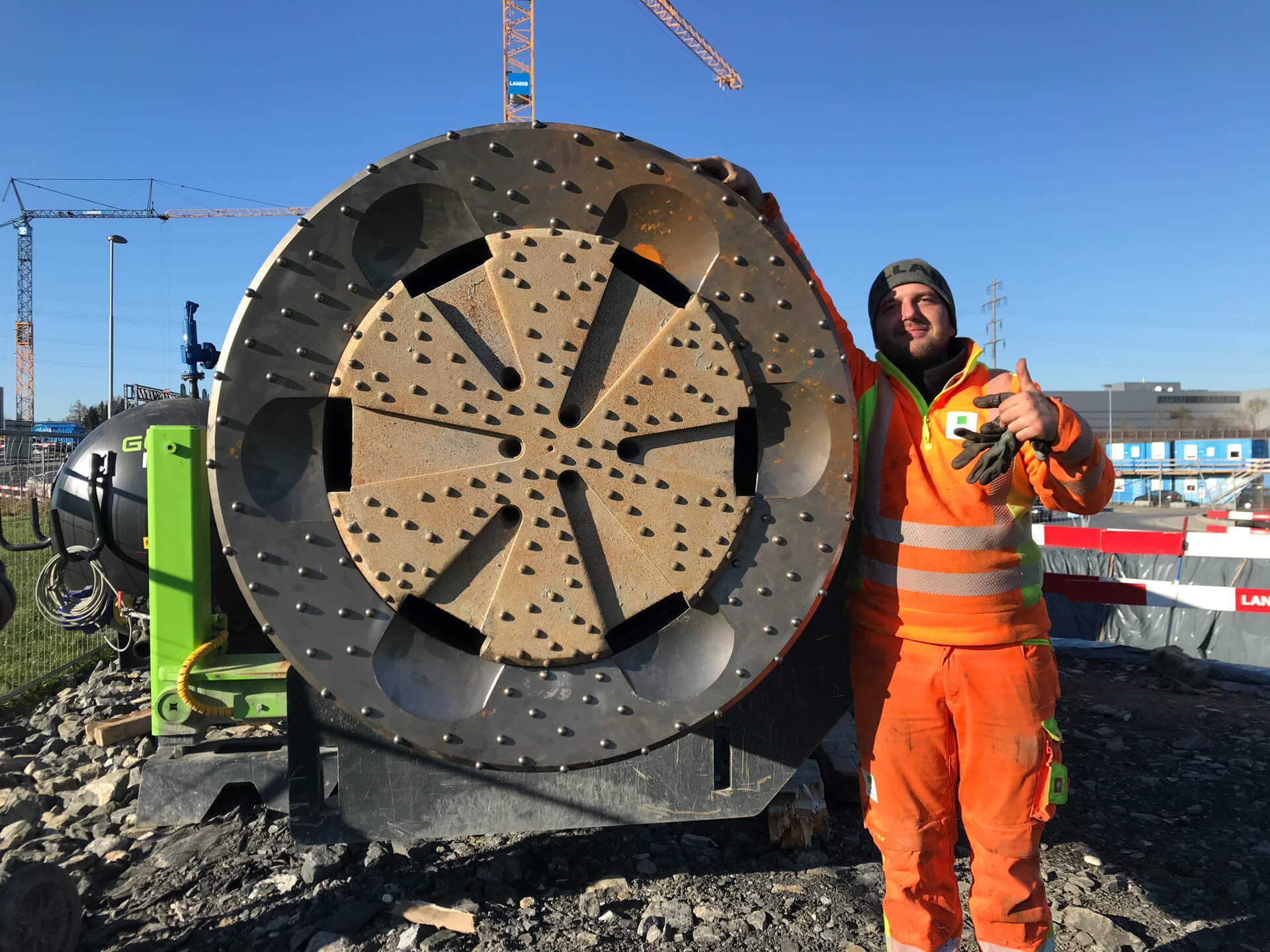

HZR1200 is supported by a full range of tooling, including pilot bits, ring bits, DTH hammers, augers, and large-diameter hole openers. The system is designed to allow fast tool changes and minimal downtime, giving contractors the flexibility to respond to varied geology and installation requirements with a single machine.

Order Geonex brochure

Learn more about Geonex products and how they fit the requirements of your trechless projects.
Order Geonex brochure
Privacy Policy
Privacy Policy

1. Introduction

In accordance with the EU regulations Geonex Oy (hereinafter referred to as “Geonex” and/or “we” and/or “us”) is responsible for the processing of your personal data. Looking after the personal data you share with us is a responsibility we don’t take lightly. We want you to be confident that your data is secure with us, and understand how we use it to offer you a better customer experience.

2. Data controller

Geonex Oy (Business ID: 2134727-3)

3. Contact details for matters related to the register

Email address: kimmo.juvani@geonex.fi

Street address: Teollisuustie 9, 95600 Ylitornio, Finland

4. The name of the register

Customer, partnership and marketing register.

5. The purpose and legal basis for the processing of personal data

We only process your personal data if this is permitted by an applicable legal regulation. The processing of your data is based on a contractual relationship between a customer/partner and Geonex, or a separate consent for the processing of customer information. The goal for the register is to make services available to you, manage and improve our day-to-day operations, personalise your Geonex experience as well as contact and interact with you.

6. Utilisation of cookies and similar techniques

A cookie is a file containing an identifier (a string of letters and numbers) that is sent by a web server to a web browser and is stored by the browser. The identifier is then sent back to the server each time the browser requests a page from the server. Cookies do not typically contain any information that personally identifies a user, but personal information that we store about you may be linked to the information stored in and obtained from cookies. We use cookies and similar technologies on our website to improve your customer experience. Users may, of course, choose not to accept cookies from our website.

7. Content of the register

The register may include, but is not limited to the following information:
Usage data [data about your use of our website and services]
Account data [may include your name and email address]
Profile data [your information included in your personal profile on our website]
Service data [your personal data that are provided in the course of the use of our services]
Publication data [information that you post for publication on our website or through our services]
Enquiry data [information contained in any enquiry you submit to us regarding goods and/or services]
Customer relationship data [information relating to our customer relationships, including customer contact information]
Transaction data [information relating to transactions, including purchases of goods and services, that you enter into with us and/or through our website]
Notification data [information that you provide to us for the purpose of subscribing to our email notifications and/or newsletters]
Correspondence data [information contained in or relating to any communication that you send to us]

8. Sources of information for the register

We collect information from you when you submit it to us, for example, when you request services or information from us. Registers are purchased for marketing purposes.

9. Disclosure information

Your personal data may be disclosed within the organisation of the data controller and its subsidiaries and sister companies and to our collaboration partners for the realisation of the purposes described herein. Otherwise, data is only disclosed to the extent permitted or required by law.

We may need to transfer your personal data outside of the European Economic Area (EEA) if it is necessary for the realisation of the service. In such cases, we will make sure that any transfer of your personal data is subject to appropriate protections as if it were being processed inside the EEA.

10. Data subject’s rights related to data processing

We know how important it is to protect and manage your personal data. You have the right to see the personal data we hold about you. Also, the data controller only collects and processes information that is necessary for its operations. Personal data that we process for any purpose or purposes shall not be kept for longer than is necessary for that purpose or those purposes.

  • Your principal rights under data protection law are:
  • the right to access;
  • the right to rectification;
  • the right to erasure;
  • the right to restrict processing;
  • the right to object to processing;
  • the right to data portability;
  • the right to complain to a supervisory authority; and
  • the right to withdraw consent.

11. Third-party websites and services

We are not responsible for the practices employed by websites, applications, or services linked to or from our site, including the information or content contained there. We recommend users check the privacy policies of any other websites they use.

12. Amendments

We may update this policy from time to time by publishing a new version on our website. You should check this page occasionally to ensure you are happy with any changes to this policy.

Geonex HZR1200 Technical Specifications

Category
EU
USA
Casing Diameter
406,4 mm – 1219,2 mm
16” – 48”
Radio Controlled
Yes
Yes
Feed force 1 gear, slow
950 KN / 300 bar
213,500 lbf / 4,350 psi
Feed force 2 gear, fast
425 KN / 300 bar
95,500 lbf / 4,350 psi
Feed speed 1 gear, slow
7 m/min
22 ft/min
Feed speed 2 gear, fast
15 m/min
49 ft/min
Rotation torque 1 gear, slow
120 000 Nm / 350 bar
88,500 ft-lb / 5,000 psi
Rotation torque 2 gear, medium
80 000 Nm / 350 bar
59,000 ft-lb / 5,000 psi
Rotation torque 3 gear, fast
40 000 Nm / 350 bar
29,500 ft-lb / 5,000 psi
Rotation speed 1 gear, slow
7 rpm
7 rpm
Rotation speed 2 gear, medium
11 rpm
11 rpm
Rotation speed 3 gear, fast
18 rpm
18 rpm
Weight ( with frame extension and rotary unit)
17 500 kg
39,000 lb
Weight ( without frame extension and rotary unit)
9 000 kg
19,850 lb
Length
7 500 mm + 2 200 mm
24’8” + 7’3”
Width
2 450 mm
8’1”
Height (jack legs)
2 450 mm
8’1”
Options
Extension frame
5 950 mm
8’1”
Extension frame
3 500 kg
7,720 lb
