Geonex HZR200 Horizontal Drilling Rig

The Geonex HZR220 is a compact yet powerful horizontal hammer boring rig, designed for urban infrastructure and tight job sites. With a drilling range from Ø139.7 mm to Ø323.9 mm, it delivers high precision and mobility without compromising performance—ideal for electric, cable, and small-diameter pipeline installations.

Key Specifications

  • Infrastructure projects with limited space and minimal surface disruption.
  • Suited for installing steel casings for water, gas, or data lines in the Ø139–323 mm range.
  • Ideal for trenchless crossings under roads, tracks, or yards
  • Delivered with integrated power pack, compressor, and radio control.
Contact us
100 m
Or 300 ft Drilling Length
323,9 mm
Or 12 3/4” in Max Drilling diameter
6,500 Nm
of Torque
4 m
Or 13’2” in Length of rig

The Benefits of the HZR220

Compact Footprint, Big Capability

Despite its small size, the HZR220 delivers serious performance. It’s engineered for environments where space is limited—urban areas, industrial sites, and narrow utility corridors. The rig requires no thrust walls or concrete foundations and fits easily into small launch pits. Combined with its quick setup and mobility, the HZR220 allows contractors to complete complex crossings in places where larger rigs simply can’t operate.

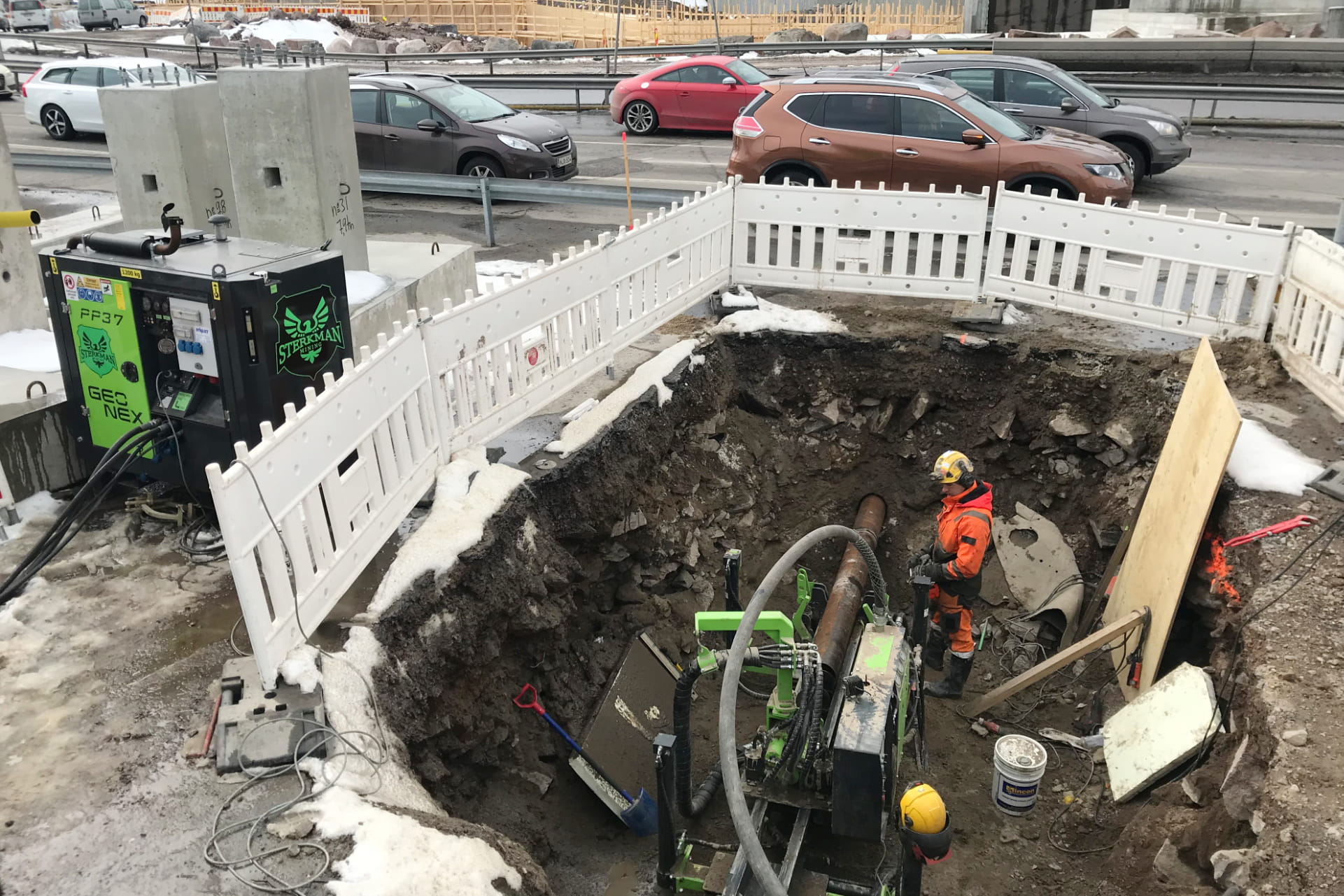

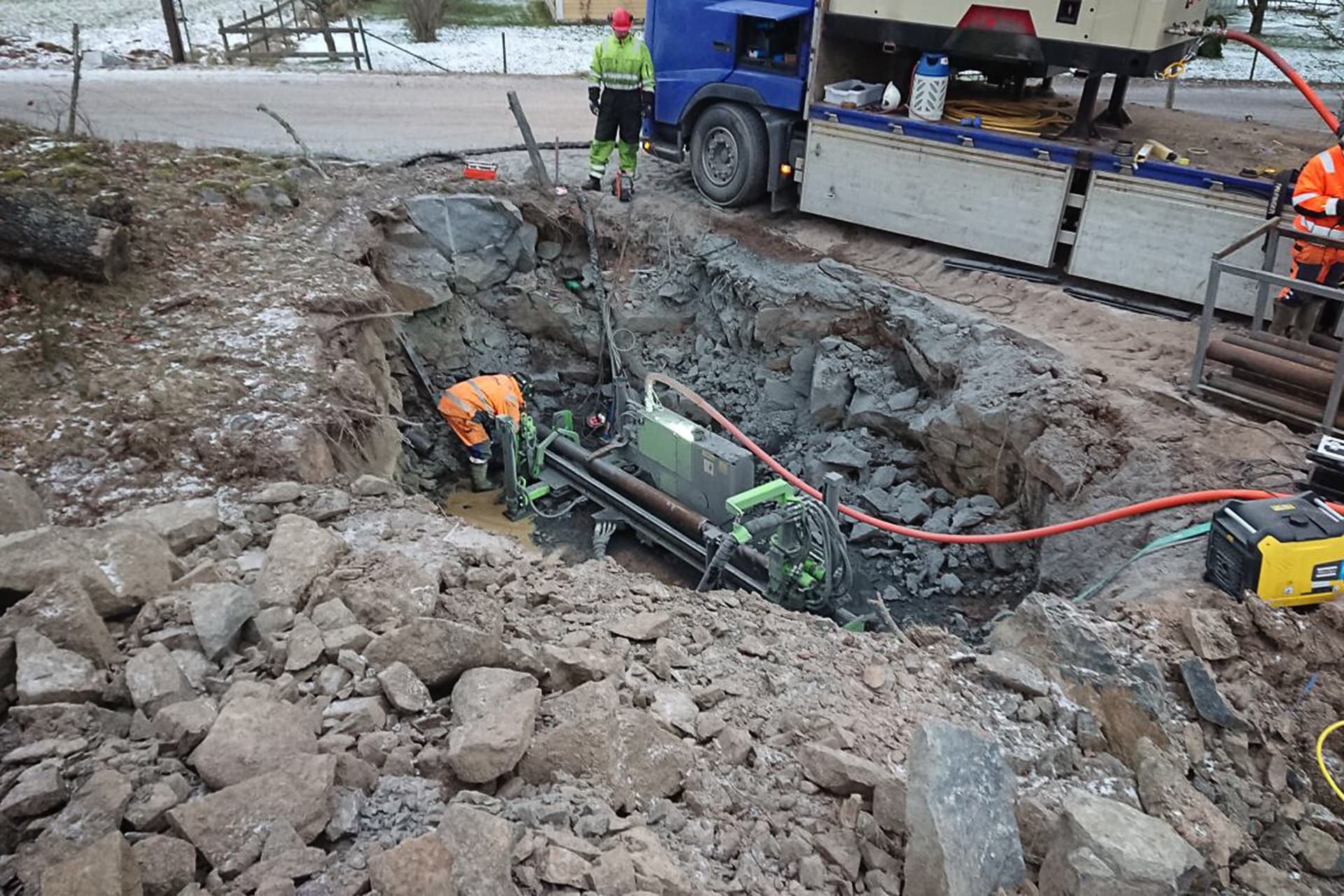

Proven Performance in the Real World

The HZR220 isn’t just a technical solution—it’s a field-tested workhorse. Contractors across Europe and North America have used it to complete bores in challenging conditions, from cobble-filled city centers to rocky rural terrain. Its reliability in varying soil types, fast cycle times, and minimal crew requirements have made it a trusted choice for utility crossings, small pipelines, and other critical trenchless projects where consistency matters.

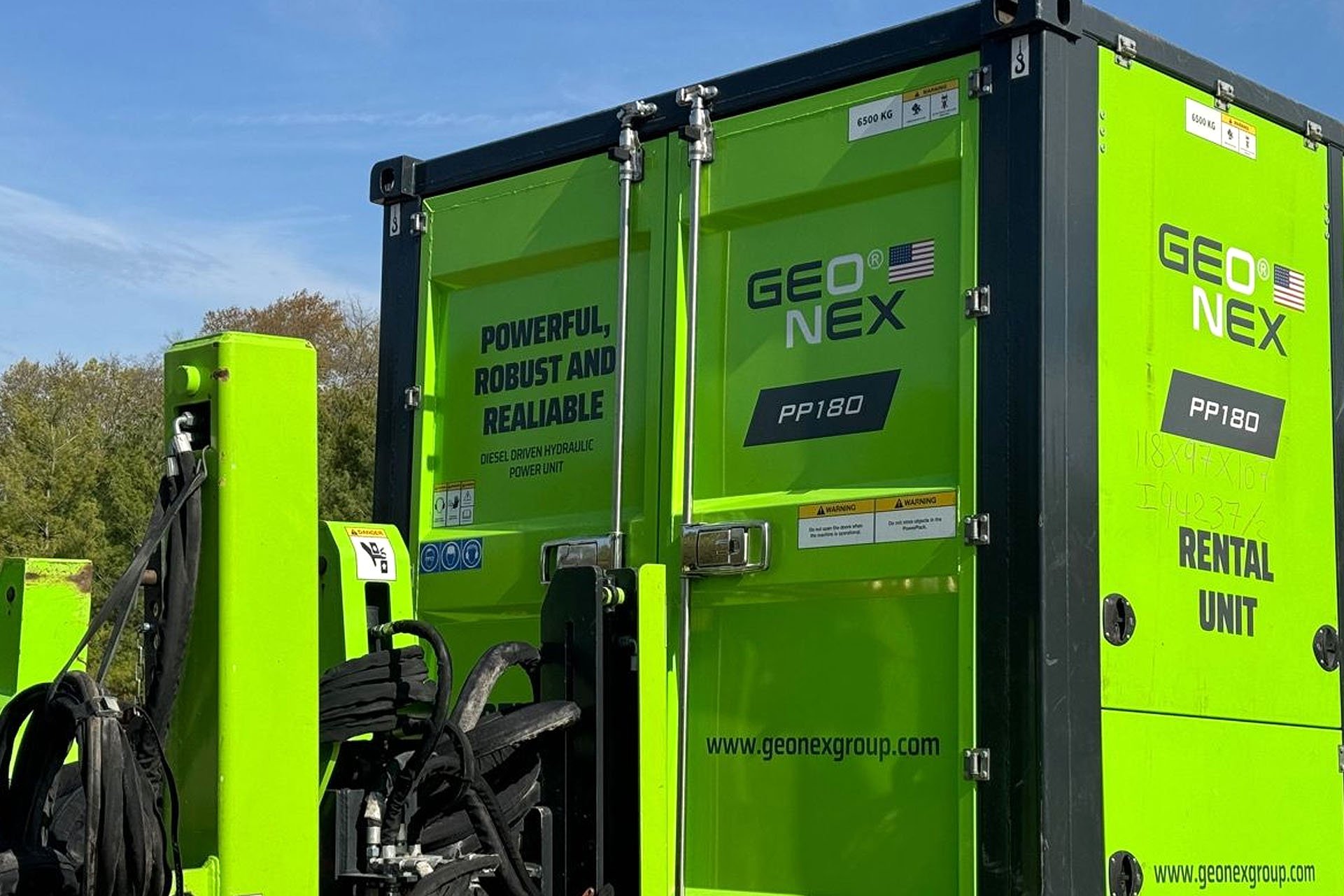

The PP180HA Power Pack for HZR220

The PP180HA is designed to deliver seamless performance with the HZR220, combining hydraulic power and integrated air supply in one compact unit. Its efficient diesel engine and smart layout reduce fuel consumption and simplify daily operation. Wireless remote control allows the operator to manage functions safely from a distance, while the quiet, stable running profile supports long working hours without interruption. Built for mobility and ease of use, the PP180HA keeps your rig productive without adding complexity to the site.

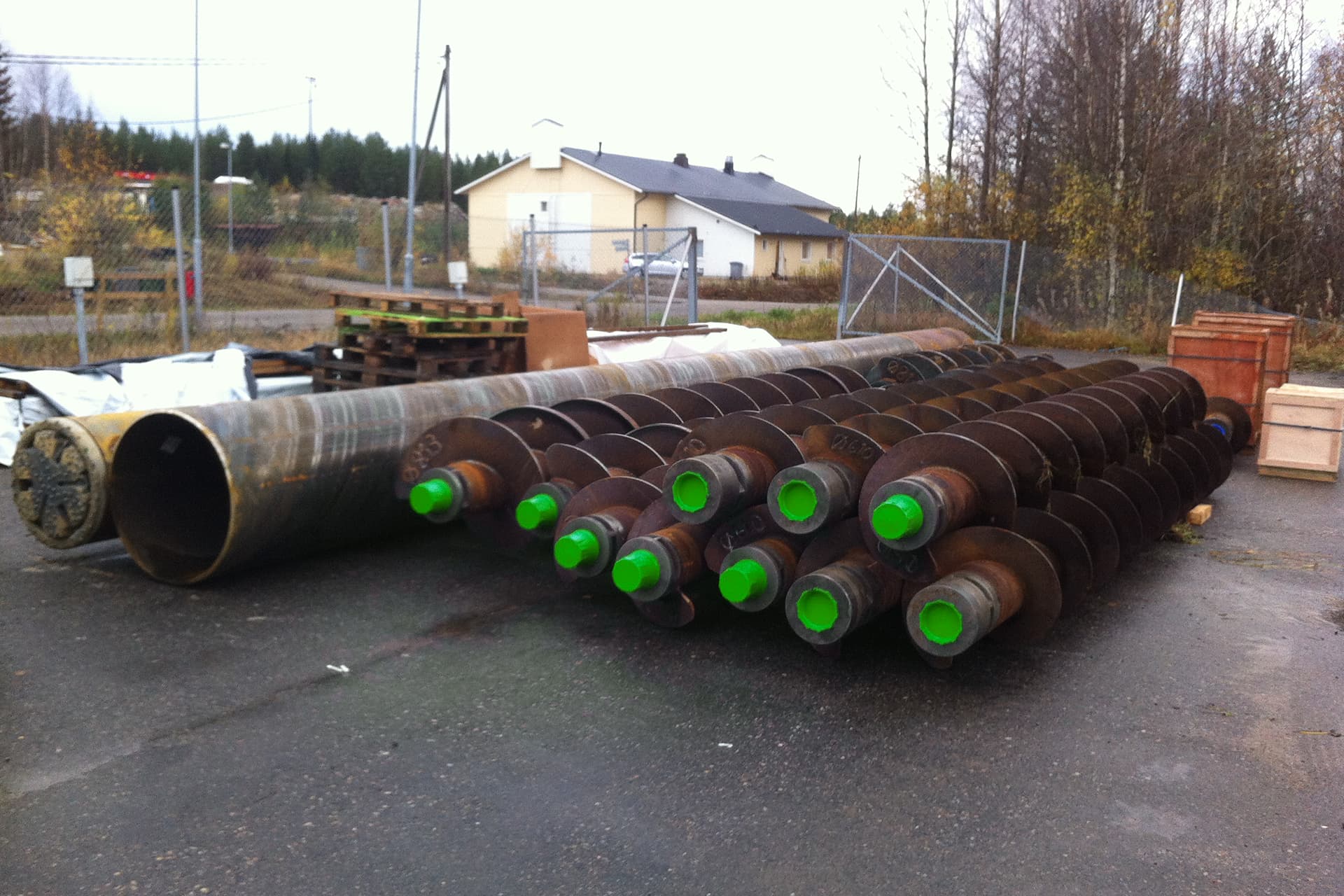

Wide range of drilling equipment

Geonex offers a complete selection of drilling tools to match the full range of casing diameters supported by the HZR220. From pilot bits and ring bits to augers and DTH hammers, every component is designed to integrate seamlessly with the rig and power pack. Tooling can be easily adapted on-site to meet project-specific requirements, helping crews respond quickly to varying conditions. All equipment is built for durability, fast handling, and precise operation—giving contractors the flexibility to take on a wide variety of bore profiles with confidence.

Order Geonex brochure

Learn more about Geonex products and how they fit the requirements of your trechless projects.
Order Geonex brochure
Privacy Policy
Privacy Policy

1. Introduction

In accordance with the EU regulations Geonex Oy (hereinafter referred to as “Geonex” and/or “we” and/or “us”) is responsible for the processing of your personal data. Looking after the personal data you share with us is a responsibility we don’t take lightly. We want you to be confident that your data is secure with us, and understand how we use it to offer you a better customer experience.

2. Data controller

Geonex Oy (Business ID: 2134727-3)

3. Contact details for matters related to the register

Email address: kimmo.juvani@geonex.fi

Street address: Teollisuustie 9, 95600 Ylitornio, Finland

4. The name of the register

Customer, partnership and marketing register.

5. The purpose and legal basis for the processing of personal data

We only process your personal data if this is permitted by an applicable legal regulation. The processing of your data is based on a contractual relationship between a customer/partner and Geonex, or a separate consent for the processing of customer information. The goal for the register is to make services available to you, manage and improve our day-to-day operations, personalise your Geonex experience as well as contact and interact with you.

6. Utilisation of cookies and similar techniques

A cookie is a file containing an identifier (a string of letters and numbers) that is sent by a web server to a web browser and is stored by the browser. The identifier is then sent back to the server each time the browser requests a page from the server. Cookies do not typically contain any information that personally identifies a user, but personal information that we store about you may be linked to the information stored in and obtained from cookies. We use cookies and similar technologies on our website to improve your customer experience. Users may, of course, choose not to accept cookies from our website.

7. Content of the register

The register may include, but is not limited to the following information:
Usage data [data about your use of our website and services]
Account data [may include your name and email address]
Profile data [your information included in your personal profile on our website]
Service data [your personal data that are provided in the course of the use of our services]
Publication data [information that you post for publication on our website or through our services]
Enquiry data [information contained in any enquiry you submit to us regarding goods and/or services]
Customer relationship data [information relating to our customer relationships, including customer contact information]
Transaction data [information relating to transactions, including purchases of goods and services, that you enter into with us and/or through our website]
Notification data [information that you provide to us for the purpose of subscribing to our email notifications and/or newsletters]
Correspondence data [information contained in or relating to any communication that you send to us]

8. Sources of information for the register

We collect information from you when you submit it to us, for example, when you request services or information from us. Registers are purchased for marketing purposes.

9. Disclosure information

Your personal data may be disclosed within the organisation of the data controller and its subsidiaries and sister companies and to our collaboration partners for the realisation of the purposes described herein. Otherwise, data is only disclosed to the extent permitted or required by law.

We may need to transfer your personal data outside of the European Economic Area (EEA) if it is necessary for the realisation of the service. In such cases, we will make sure that any transfer of your personal data is subject to appropriate protections as if it were being processed inside the EEA.

10. Data subject’s rights related to data processing

We know how important it is to protect and manage your personal data. You have the right to see the personal data we hold about you. Also, the data controller only collects and processes information that is necessary for its operations. Personal data that we process for any purpose or purposes shall not be kept for longer than is necessary for that purpose or those purposes.

  • Your principal rights under data protection law are:
  • the right to access;
  • the right to rectification;
  • the right to erasure;
  • the right to restrict processing;
  • the right to object to processing;
  • the right to data portability;
  • the right to complain to a supervisory authority; and
  • the right to withdraw consent.

11. Third-party websites and services

We are not responsible for the practices employed by websites, applications, or services linked to or from our site, including the information or content contained there. We recommend users check the privacy policies of any other websites they use.

12. Amendments

We may update this policy from time to time by publishing a new version on our website. You should check this page occasionally to ensure you are happy with any changes to this policy.

Geonex HZR220 Technical Specifications

Category
EU
USA
Casing Diameter
139,7 mm – 323,9 mm
5 ½” – 12¾”
Radio Controlled
Yes
Yes
Feed Force
50 kN
11,240 lbf
Feed Speed
~20 m/min
~66 ft/min
Torque (1st Gear)
6 500 Nm / 250 bar
4,800 ft-lb / 3,265 psi
Torque (2nd gear)
3 250 Nm / 250 bar
2,400 ft-lb / 3,625 psi
Speed (1st gear)
26 rpm
26 rpm
Speed (2nd gear)
52 rpm
52 rpm
Weight
1 650 kg
3,640 lb
Length
3 000 mm + 1 000 mm
9’10” + 3’4”
Width
1 420 mm
4’8”
Height (jack legs)
1 450 mm
4’9”
Options
Water pump
Water pump
