Geonex HZR400 Horizontal Drilling Rig

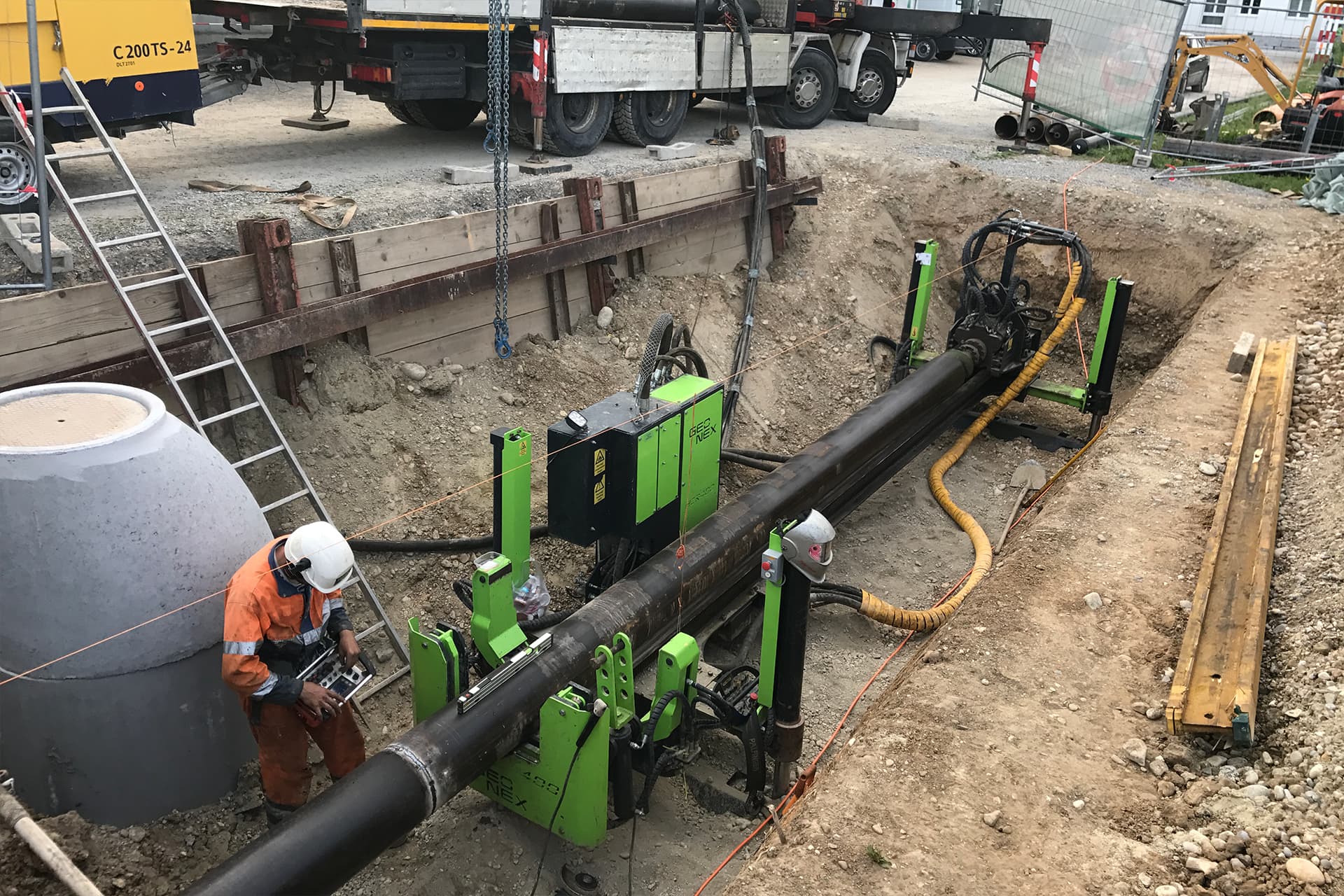

The Geonex HZR400 is a mid-sized horizontal hammer boring rig designed for infrastructure projects requiring casings from Ø168.3 mm to Ø508 mm. It offers the right combination of mobility, torque, and stability for crossings under roads, railways, and urban areas—especially where mixed ground or hard layers are present. Suitable for both utility contractors and municipalities looking for a dependable, all-purpose machine.
Key Specifications
- Suitable for steel casing installations from Ø168 to Ø508 mm for water, gas, and district heating lines.
- Handles challenging bore paths in mixed soils, boulders, and layered ground conditions with ease.
- Fits mid-size crossings under roads, highways, industrial zones, and open terrain.
- Delivered with integrated power pack, compressor, and radio control.
100
m
Or 300 ft Drilling Length
508
mm
Or 20” in Max Drilling diameter
15,500
Nm
of Torque
7,5
m
Or 24’9” in Length of rig
The Benefits of the HZR400
Balanced Power for Mid-Scale Projects
The HZR400 offers the ideal balance between torque, feed force, and compact design—fitting a wide range of applications. It’s engineered for jobs where the diameter requirements go beyond smaller rigs but don’t yet call for the size of the HZR610 or 1200. Its modular frame allows jobsite adaptation, making it both versatile and transport-friendly.
Dependable Performance in Mixed Ground

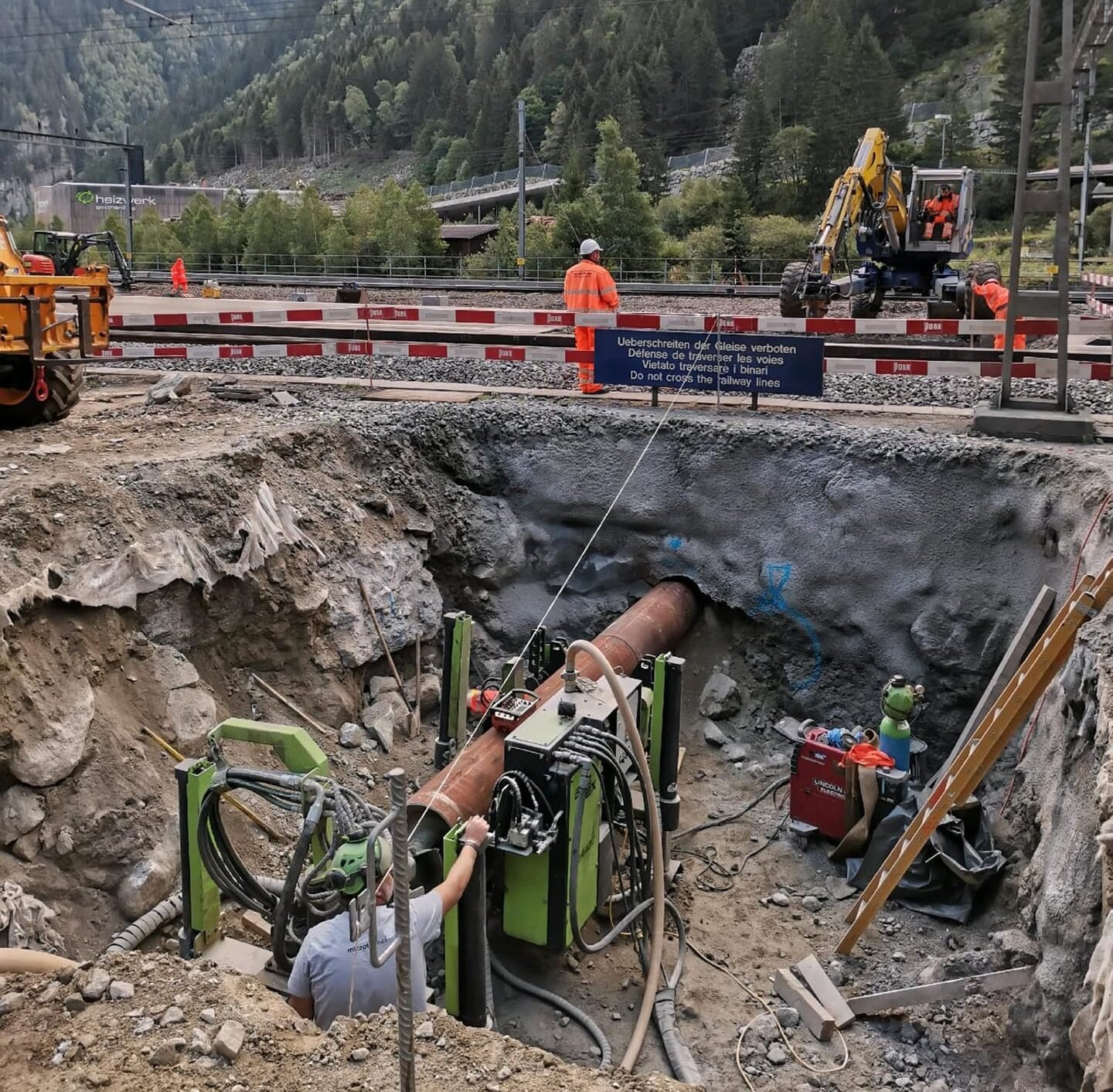

From fill materials to boulder fields and fractured rock, the HZR400 maintains steady progress with minimal operator intervention. Its rotation and feed systems are optimized for stability, and casing advancement remains smooth even in inconsistent layers. Contractors across Europe and North America rely on it for consistent project outcomes.
Power Pack Options for HZR400
The HZR400 is paired with the Geonex PP100 power pack, a compact yet powerful hydraulic unit designed specifically for this rig. It includes an integrated air compressor and supports radio control, enabling safe and efficient operation from a distance. The PP100 delivers the necessary torque and feed pressure for challenging bores, while its streamlined design simplifies transport and setup—ideal for contractors who value reliability and flexibility in mid-size trenchless projects.
Wide range of drilling equipment
Geonex offers a complete selection of drilling tools to match the full range of casing diameters supported by the HZR220. From pilot bits and ring bits to augers and DTH hammers, every component is designed to integrate seamlessly with the rig and power pack. Tooling can be easily adapted on-site to meet project-specific requirements, helping crews respond quickly to varying conditions. All equipment is built for durability, fast handling, and precise operation—giving contractors the flexibility to take on a wide variety of bore profiles with confidence.
Order Geonex brochure
Learn more about Geonex products and how they fit the requirements of your trechless projects.
Geonex HZR220 Technical Specifications
Category
EU
USA
Casing Diameter
139,7 mm – 508,0 mm
5 ½” – 20”
Radio Controlled
Yes
Yes
Feed Force
150KN/250 bar
33,700 lbf / 3,625 psi
Feed Speed
n. 10 m/min
n. 32 ft/min
Rotation torque 1 gear, slow
15 500 Nm / 250 bar
11,440 ft-lb / 3,625 psi
Rotation torque 2 gear, fast
10 000 Nm / 250 bar
7,380 ft-lb / 3,625 psi
Rotation speed 1 gear, slow
30 rpm
30 rpm
Rotation speed 2 gear, fast
45 rpm
45 rpm
Weight ( with Shortening frame section)
3 900 kg
8,600 lb
Weight ( without Shortening frame section)
3 450 kg
7,610 lb
Length
4 550 mm + 3 000 mm
14’11” + 9’10”
Width
2 000 mm
6’7”
Height (jack legs)
1 800 mm
5’11”
Options
Shortening frame section
3 000 mm
9’10”
Shortening frame section
450 kg
995 lb
Water pump
Yes
Yes
