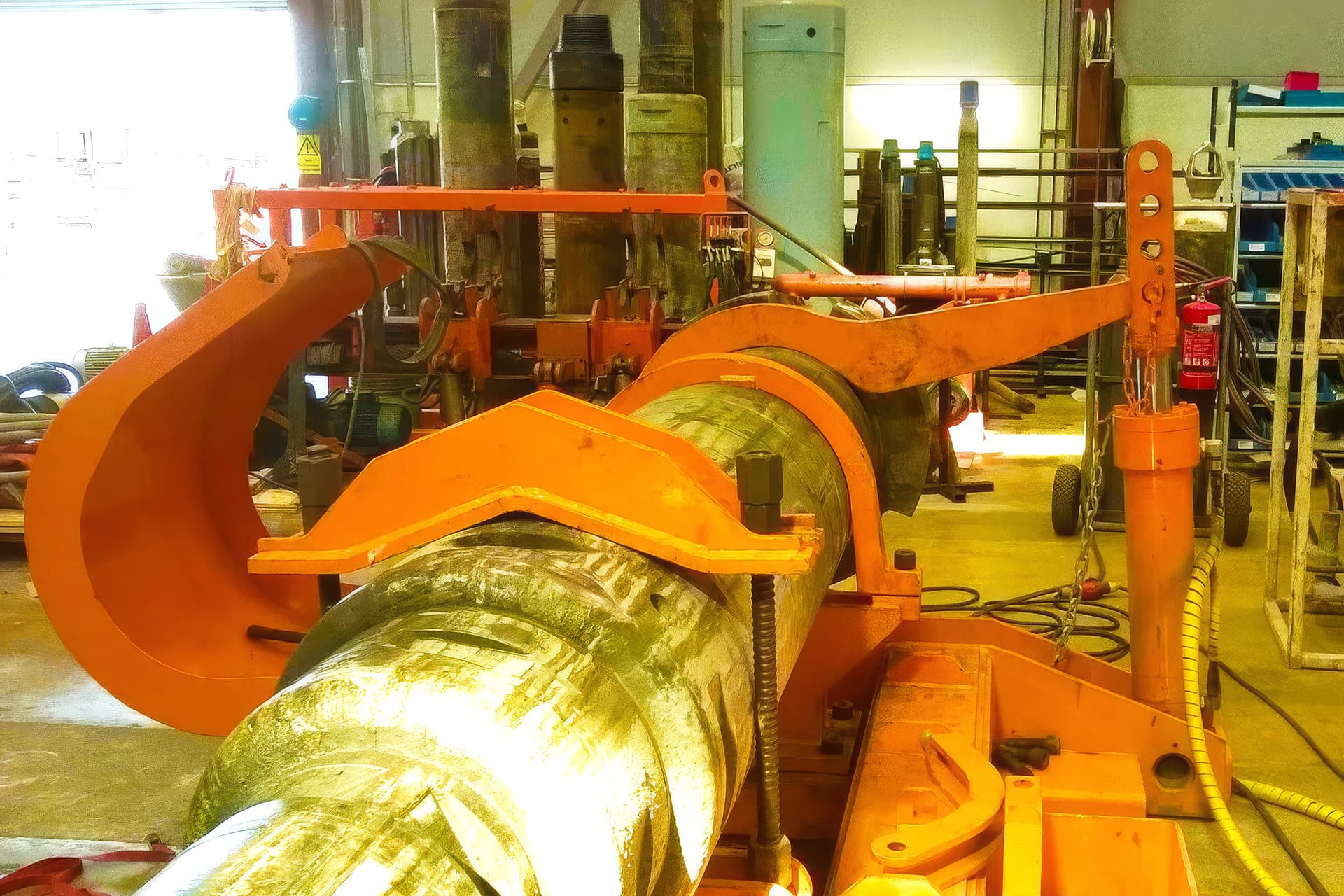

Geonex Break Out Bench
Geonex Break Out Bench is designed for opening and closing threaded connections in DTH equipment. It supports maintenance, repair, and servicing of hammers and drill components with controlled hydraulic force. The unit improves workflow on site and reduces downtime during equipment handling.
Key Specifications
- Hydraulic control for opening and closing connections
- Efficient servicing of DTH hammers and components
- Opens jammed drill pipe and couplings
- Compatible with Geonex power packs or external hydraulics
2
models
Two models
4
"
Minimum hammer size
24
"
Maximum hammer size

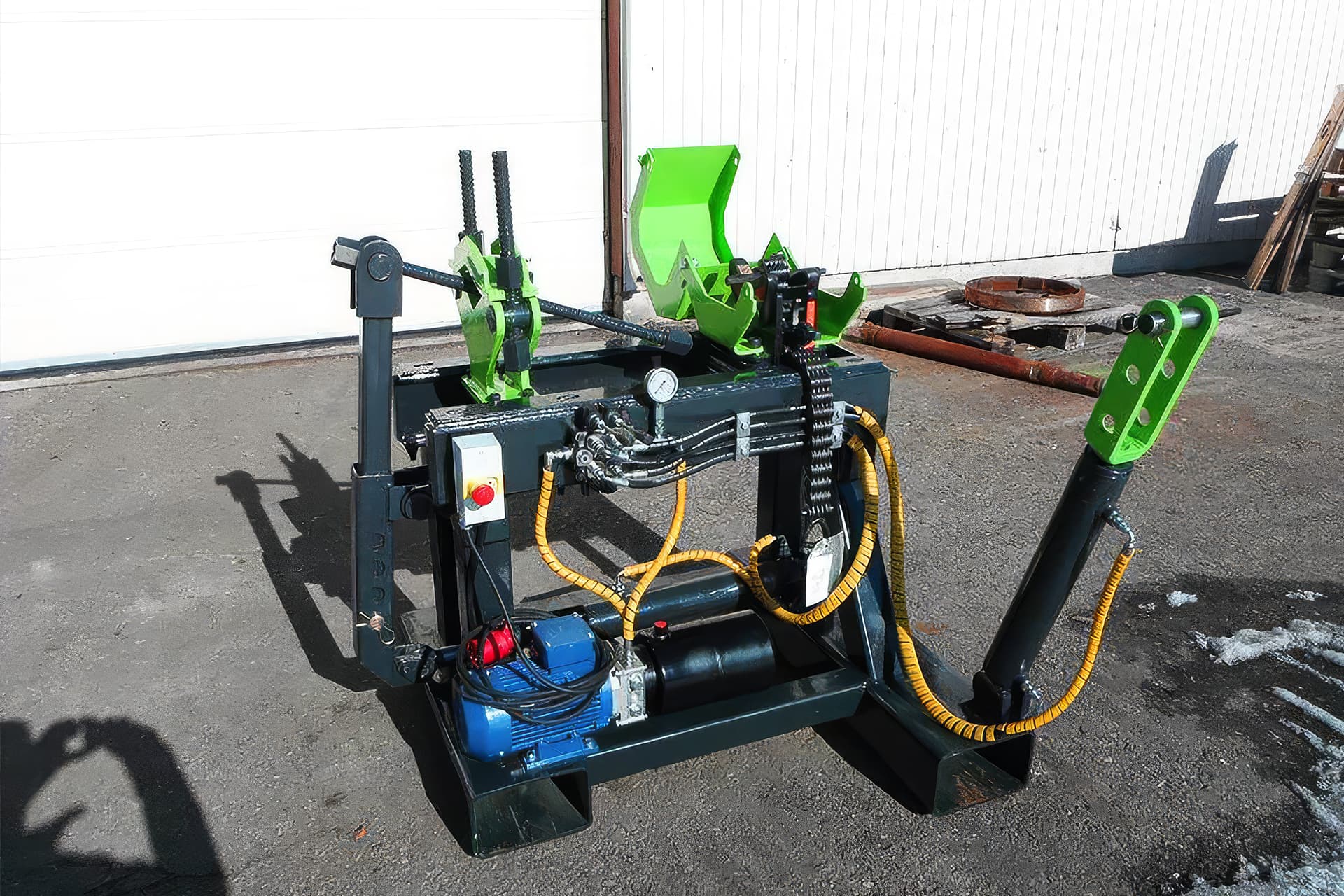

Geonex Break-out Bench HW8
Suitable hammer sizes
4”-8”
Length mm (ft in)
1210 (4’)
Width mm (ft in)
1400 (4’ 8”)
Height mm (ft in)
260 (4’ 2”)
Weight kg (lb)
450 (990)
OPTION Electrical power pack
230 v
OPTION
Hammer & rod spanners

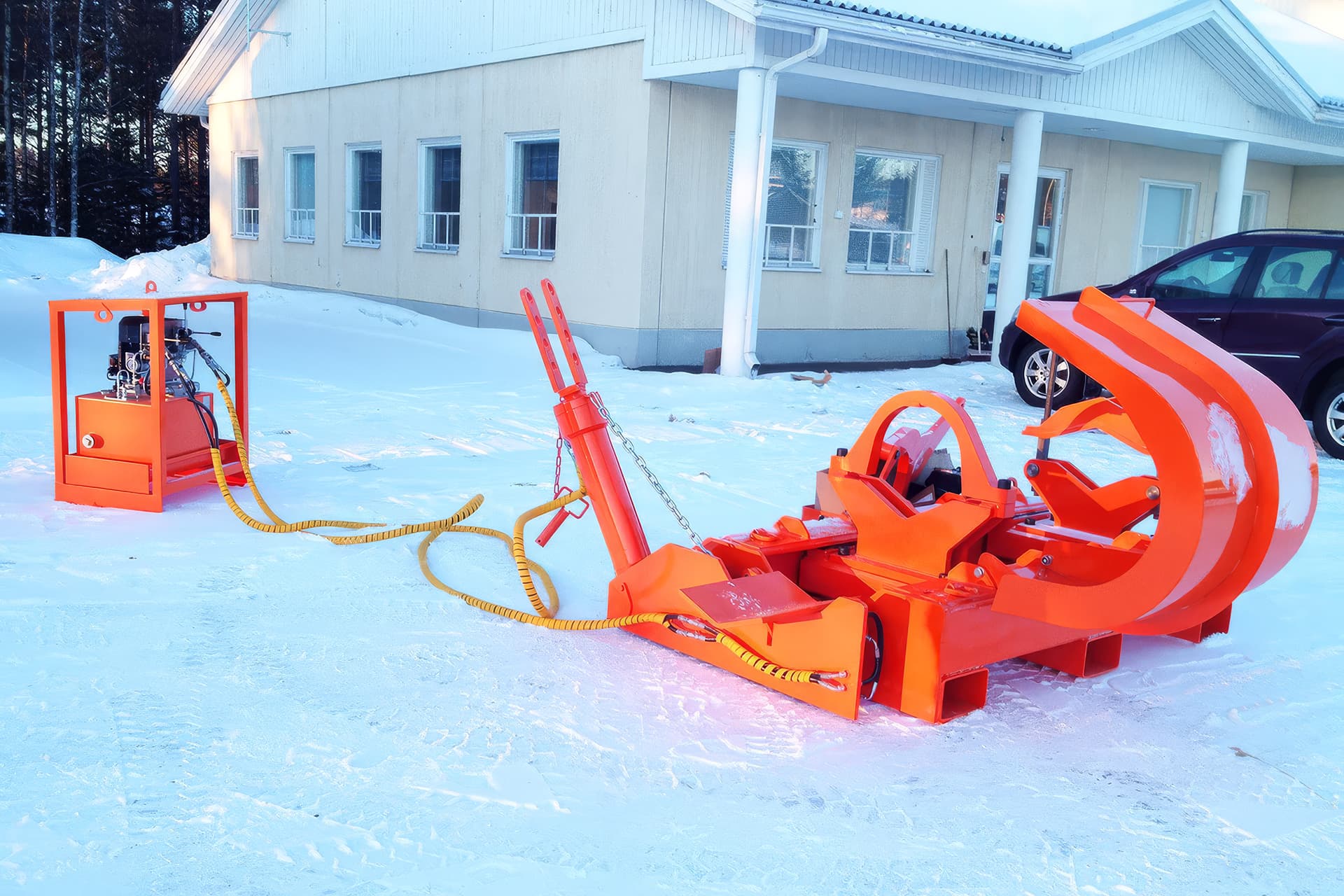

Geonex Break-out Bench HW24
Suitable hammer sizes
8”-24”
Length mm (ft in)
2450 (8’ 1”)
Width mm (ft in)
1710 (5’ 8”)
Height mm (ft in)
1360 (4’ 6”)
Weight kg (lb)
2400 (5300)
OPTION Electrical power pack
380 v
OPTION
Hammer & rod spanners, Tong vise
The Benefits of the DTH hammers
