Geonex PP205 Power Pack

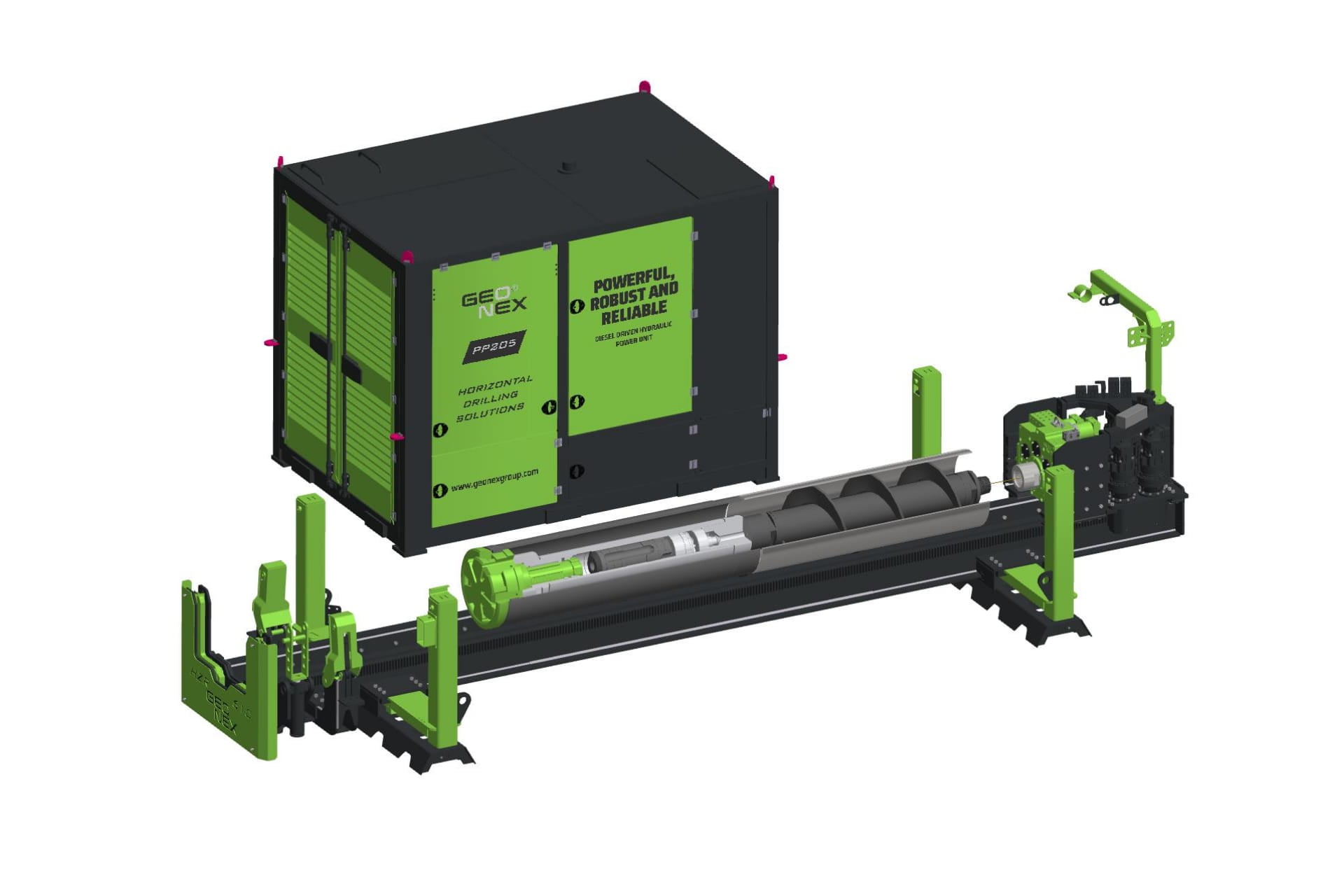

The PP205 is a high-output hydraulic power unit designed for large horizontal boring rigs like the HZR610 and HZR1200. With 205 kW of engine power, dual high-flow pumps, and generous fuel and oil capacities, it ensures stable performance during long and continuous boring operations.

Key Specifications

  • 205 kW Diesel Power with EU Stage 5 Compliance
  • Dual High-Flow Hydraulic Pumps
  • Large-Capacity Tanks for Continuous Operation
  • Heavy-Duty Build for Demanding Projects
205 kW
(274 hp) hydraulic output
350 bar
max pressure
6,500 kg
(14,330 lb) weight
450 L
(120 gal) fuel capacity

The Benefits of the Geonex PP205

Heavy-Duty Output for Large-Scale Boring

The PP205 delivers 205 kW of hydraulic power and up to 350 bar of pressure, meeting the demands of large-diameter casing installations and extended boring runs. Its 7.1L diesel engine is built for continuous use, while the dual hydraulic pumps ensure high flow and responsive control. With robust design and smooth hydraulic performance, the PP205 supports uninterrupted operation on complex infrastructure projects.



Optimized for Performance and Endurance

Built for long shifts and high-volume productivity, the PP205 features large 450-liter fuel and 550-liter oil tanks—minimizing the need for refueling or maintenance stops. Its compact frame and clear control layout make it easy to integrate with Geonex rigs, and optional systems like a water pump or generator (EU only) add even more flexibility for diverse jobsite needs.

Order Geonex brochure

Learn more about Geonex products and how they fit the requirements of your trechless projects.
Order Geonex brochure
Privacy Policy

1. Introduction

In accordance with the EU regulations Geonex Oy (hereinafter referred to as “Geonex” and/or “we” and/or “us”) is responsible for the processing of your personal data. Looking after the personal data you share with us is a responsibility we don’t take lightly. We want you to be confident that your data is secure with us, and understand how we use it to offer you a better customer experience.

2. Data controller

Geonex Oy (Business ID: 2134727-3)

3. Contact details for matters related to the register

Email address: kimmo.juvani@geonex.fi

Street address: Teollisuustie 9, 95600 Ylitornio, Finland

4. The name of the register

Customer, partnership and marketing register.

5. The purpose and legal basis for the processing of personal data

We only process your personal data if this is permitted by an applicable legal regulation. The processing of your data is based on a contractual relationship between a customer/partner and Geonex, or a separate consent for the processing of customer information. The goal for the register is to make services available to you, manage and improve our day-to-day operations, personalise your Geonex experience as well as contact and interact with you.

6. Utilisation of cookies and similar techniques

A cookie is a file containing an identifier (a string of letters and numbers) that is sent by a web server to a web browser and is stored by the browser. The identifier is then sent back to the server each time the browser requests a page from the server. Cookies do not typically contain any information that personally identifies a user, but personal information that we store about you may be linked to the information stored in and obtained from cookies. We use cookies and similar technologies on our website to improve your customer experience. Users may, of course, choose not to accept cookies from our website.

7. Content of the register

The register may include, but is not limited to the following information:
Usage data [data about your use of our website and services]
Account data [may include your name and email address]
Profile data [your information included in your personal profile on our website]
Service data [your personal data that are provided in the course of the use of our services]
Publication data [information that you post for publication on our website or through our services]
Enquiry data [information contained in any enquiry you submit to us regarding goods and/or services]
Customer relationship data [information relating to our customer relationships, including customer contact information]
Transaction data [information relating to transactions, including purchases of goods and services, that you enter into with us and/or through our website]
Notification data [information that you provide to us for the purpose of subscribing to our email notifications and/or newsletters]
Correspondence data [information contained in or relating to any communication that you send to us]

8. Sources of information for the register

We collect information from you when you submit it to us, for example, when you request services or information from us. Registers are purchased for marketing purposes.

9. Disclosure information

Your personal data may be disclosed within the organisation of the data controller and its subsidiaries and sister companies and to our collaboration partners for the realisation of the purposes described herein. Otherwise, data is only disclosed to the extent permitted or required by law.

We may need to transfer your personal data outside of the European Economic Area (EEA) if it is necessary for the realisation of the service. In such cases, we will make sure that any transfer of your personal data is subject to appropriate protections as if it were being processed inside the EEA.

10. Data subject’s rights related to data processing

We know how important it is to protect and manage your personal data. You have the right to see the personal data we hold about you. Also, the data controller only collects and processes information that is necessary for its operations. Personal data that we process for any purpose or purposes shall not be kept for longer than is necessary for that purpose or those purposes.

  • Your principal rights under data protection law are:
  • the right to access;
  • the right to rectification;
  • the right to erasure;
  • the right to restrict processing;
  • the right to object to processing;
  • the right to data portability;
  • the right to complain to a supervisory authority; and
  • the right to withdraw consent.

11. Third-party websites and services

We are not responsible for the practices employed by websites, applications, or services linked to or from our site, including the information or content contained there. We recommend users check the privacy policies of any other websites they use.

12. Amendments

We may update this policy from time to time by publishing a new version on our website. You should check this page occasionally to ensure you are happy with any changes to this policy.

Geonex PP205 Technical Specifications

Geonex PP205
EU
US
Diesel engine
CAT C7.1 I6
CAT C7.1 I6
Engine displacement
7,1 L
433 cid
Engine power
205 KW
274 hp
Emission class
EU Stage 5
Tier 4 F
Max engine speed
2 100 rpm
2 100 rpm
Electric system
24 V
24 V
Fuel capacity
450 L
120 gal
Pump 1 max pressure
350 bar
5,000 psi
Pump 1 max flow
220 l/min
92 gal
Pump 2 max pressure
350 bar
5,000 psi
Pump 2 max flow
195 l/min
51 gpm
Hydraulic oil capacity
550 L
92 gal
Weight
6 500 kg
14,330 lb
Length
3 285 mm
10’10”
Width
2 200 mm
7’3”
Height
2 525 mm
8’4”
Options
Generator HG18KVA
Option, Only Europe
no
Water pump
Yes
Yes
